Since rafts are usually used when in danger or trouble we have used the raft to symbolize an escape from the Dystopian city site to the Utopian Waiheke site.

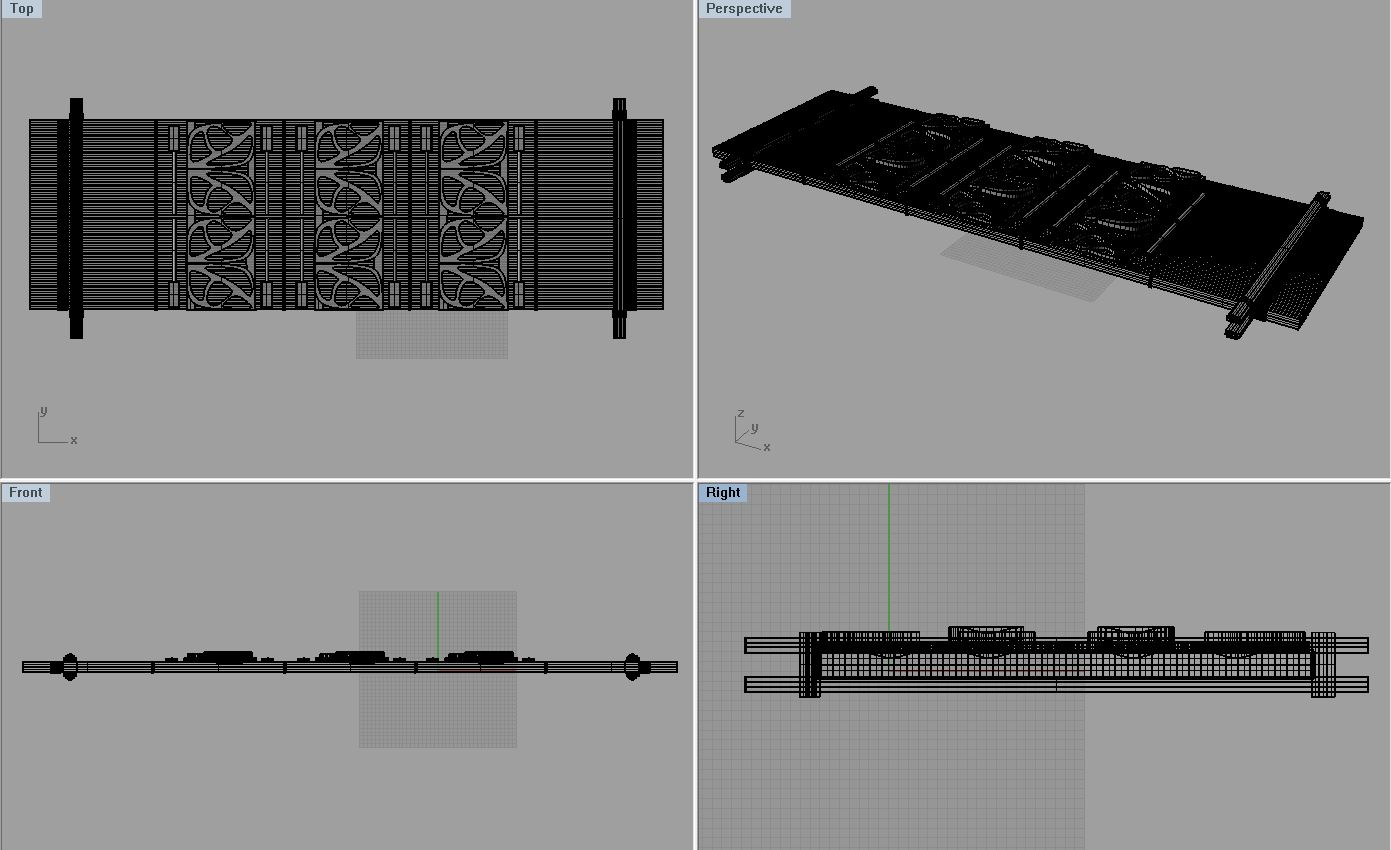

RHINO FILE
 |
| Close ups |
The perspective image on the top right corner can either be used as luggage holders or seats/rooms for passengers to hold on to on the raft.
3DS MAX FILE
Proposed material in real life scale for the raft would be wood and a light weight aluminium to hold the raft together.
ARCHICAD SECTION
 |
| Cut lines are colored dark blue -Eman |
